A500 Series
Flagship Continuous Fiber 3D Printer
Inquiry Now
The A500 Series: Making Continuous Fiber Accessible
Breaking down cost and technical barriers to bring continuous fiber technology to every industry.From Lab to Reality
Moving Beyond Theory – Turning research into practical solutions
Affordable Innovation – Cutting costs on both systems and materials
Honest Engineering – Focusing on real-world applications
Uncompromised Performance – Combining large format, stability and speed
Open Ecosystem – Building an accessible industrial platform
410×360×510mm
Max.Build Volume
Recirculating Filtration
Clean and Office-Friendly
Max.Print Speed 500mm/s
5× faster than conventional CF printers
Smart Material System
Prevents warping at source
10-Second Nozzle Swap
Modular hotend design
Dual Thermal Management
Heated chamber + active cooling

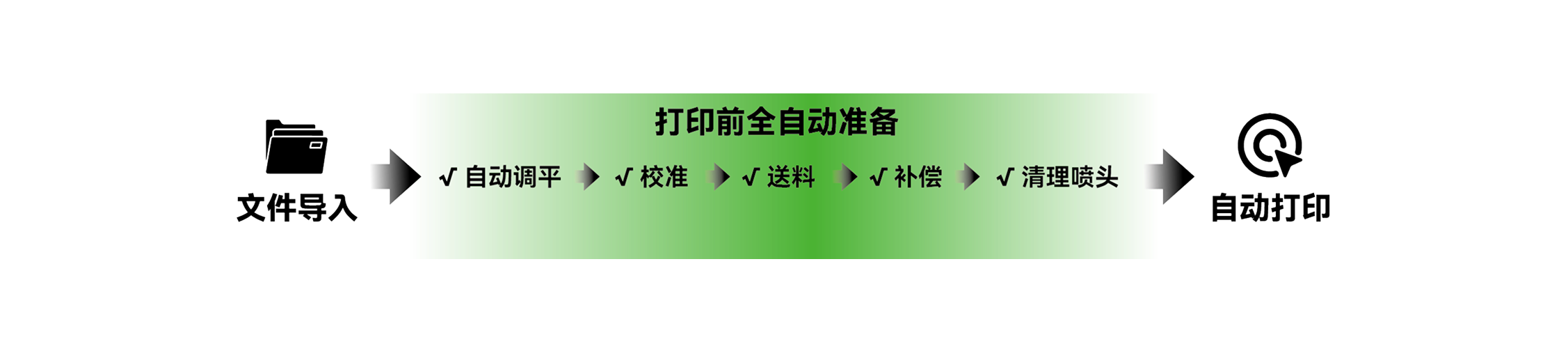

Unattended, One-Click Printing
Smart connectivity that lets you focus on creation
A leap in build volume and speed
Space
Build Volume: A True Breakthrough
1 kg Daily Output
High efficiency, redefined as routine
The Intelligent Fiber Printing Expert
Unattended Operation
One-Click Start → The System Takes Over
Smart Maintenance
Let the system handle the work—create without interruption
Your Most Flexible Office Assistant
Your Needs, Our Solutions

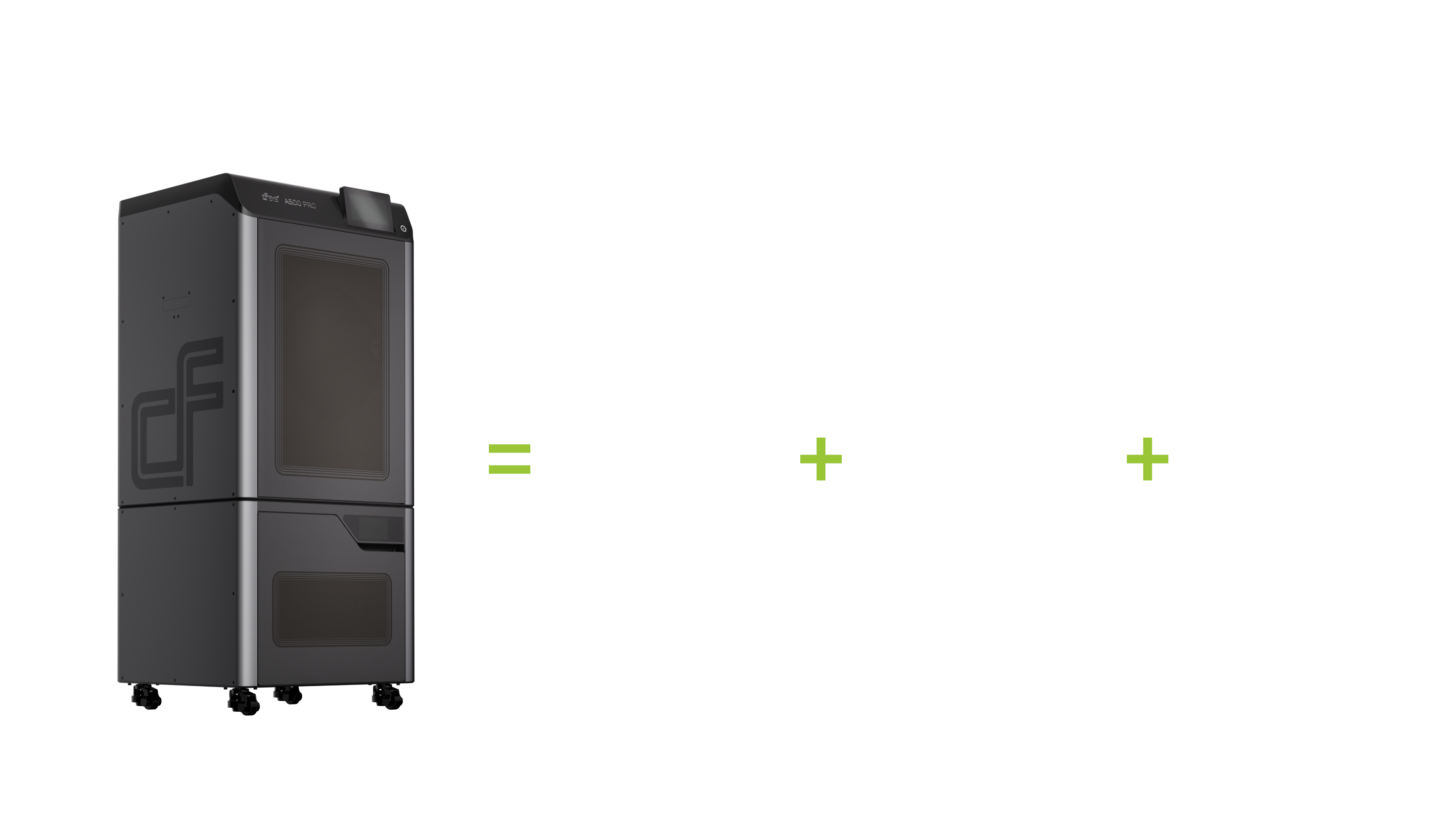

All-in-One Versatility, Total Control

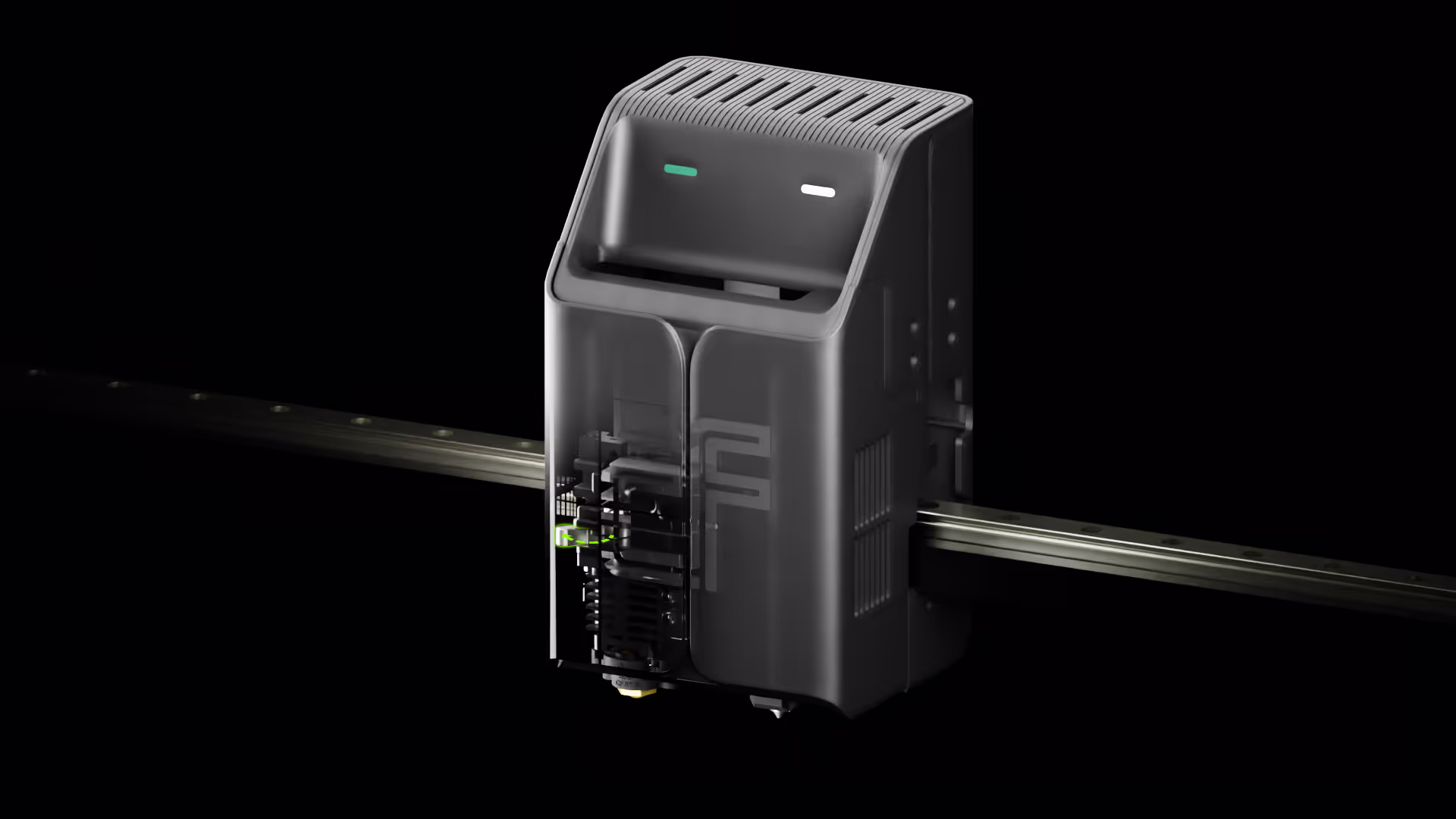

10-Second Nozzle Swap
Tool-free hotend changes for non-stop printing

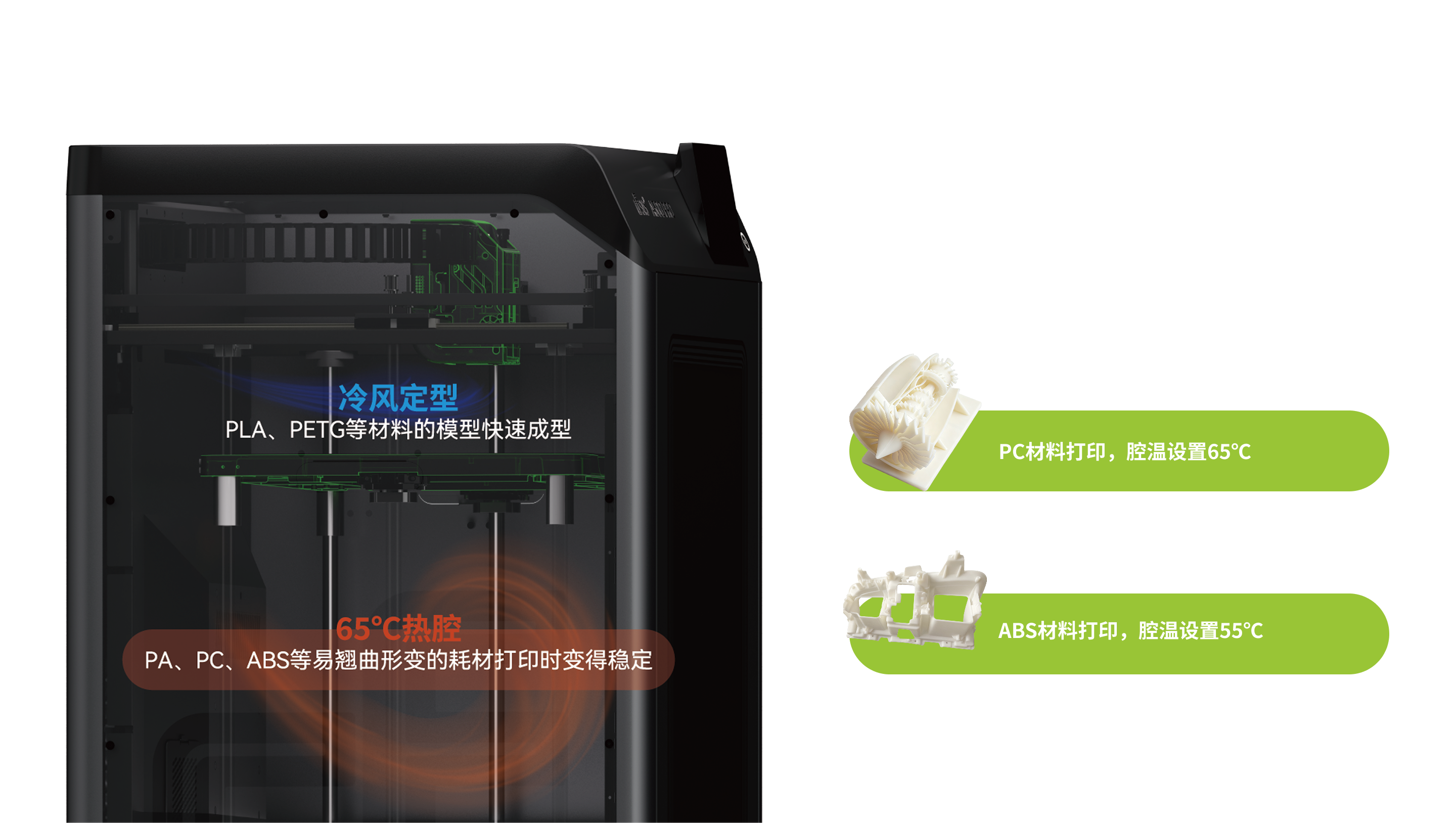

Dual Thermal Control
Heated chamber and active cooling for reliable printing of complex geometries
Eco-Friendly
Ultimate Safety, Silent Operation
Activated Carbon Filtration
Removes PM2.5/HCHO / NH₃ / Cl₂ / C₆H₆ & other VOCs
≤50 dB Quiet Operation
Active Motor Quieting
Intelligent Consumables Platform

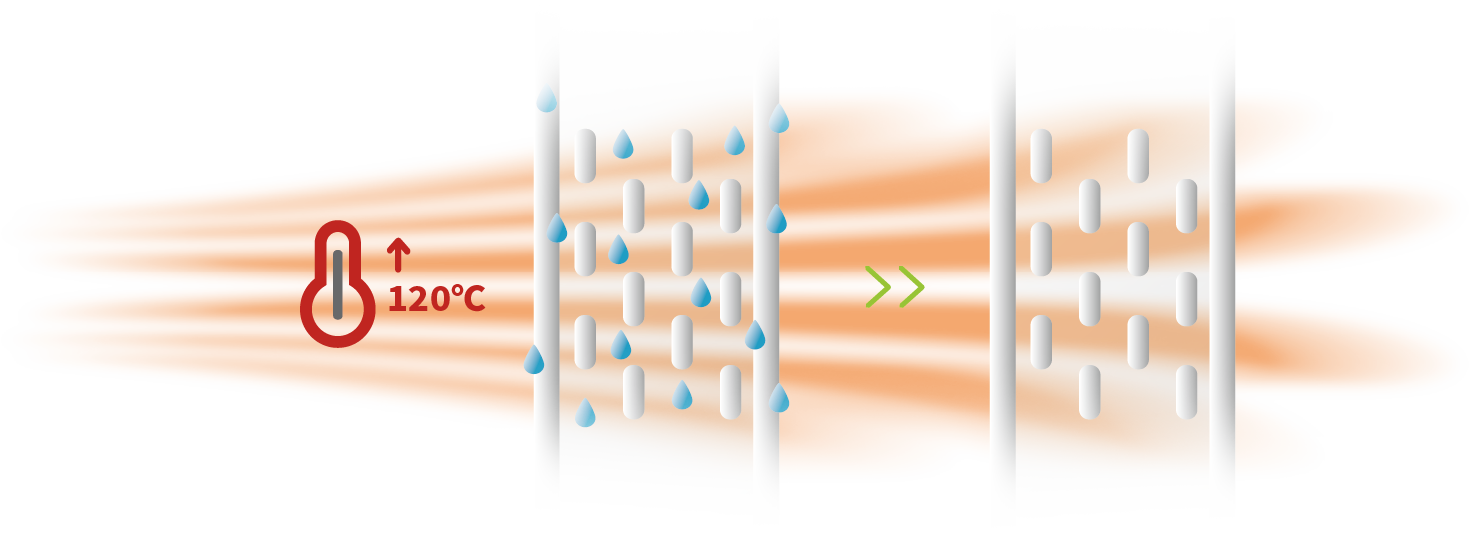

Opens Material Pores
Penetrating Drying at 120°C

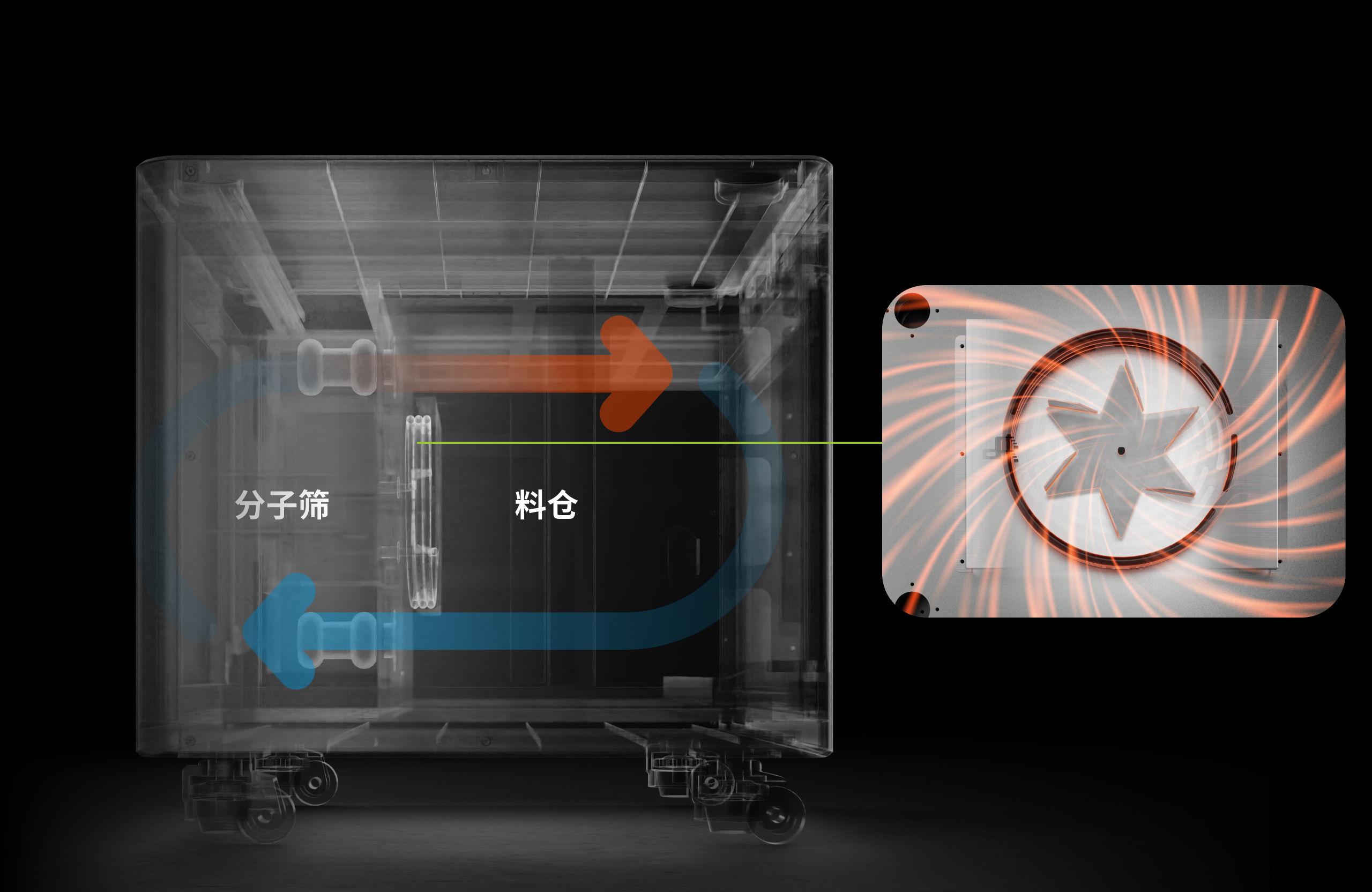

Patented Turbo System
Redefining the Drying Process
Worry-Free Material Storage
Networked & Continuous Printing
Large 12kg (4x3kg) Total Capacity
A500 Series Product Parameters
| Device Model |
A500 |
A500Pro |
| Printing Propertie |
Build Volume |
Single Print-head: 408×355×510mm |
| Dual Print-head: 380×355×510mm |
| Printing Speed |
Max. 500mm/s；20000mm²/s（polymers printing） |
| Precision |
±0.15mm |
| Layer Height |
100μm - 250μm |
| Nozzle Diameter |
Continuous Fiber: 1.0mm（Standard） |
| Composite Polymers: 0.4mm（Standard）｜0.6mm ｜ 0.8mm |
| Max Temp |
350℃（Nozzle） |
| 100℃（Build Plate） |
| 65℃（Chamber） |
| Filament |
Continuous Fiber |
Carbon Fiber | Glass Fiber (In Development) | Aramid Fiber (In Development) |
| Composite Polymers |
PA-CF,PET-CF,ABS-CF，PC,PA,ABS,ASA,PP|stc. |
| Software |
Bulber |
Multi-Printer Management | Remote Monitoring |
3 Fiber Placement Methods
Color-Based Selection | Layer-Based Selection | Mask-Based Selection |
4 Fiber Placement Methods
Color-Based Selection | Layer-Based Selection
Mask-Based Selection | Force Flow Analysis |
| Filament Management System |
| Auto Feeding |
/ |
4 spools×3kg（Max） |
| Auto Heating |
/ |
120℃ |
| Auto Drying |
/ |
≤15%RH |
| Desiccant Lifespan |
/ |
≥6 Months |
Engineering Plastic
*Can be heated&dried |
/ |
PC，PA, ABS, ASA, PP，PA-CF，
PET-CF，ABS-CF，PEEK-CF|etc. |
| Device Specification |
| Device Software |
One-click Printing ｜Power Loss Recovery ｜ Auto Leveling ｜ Auto Shutdown ｜ Auto Calibration |
| Connectivity |
2.4/5G WiFi ｜ USB Port ｜Ethernet |
| Operating System |
WINDOWS ｜ macOS ｜ LINUX |
| Noise Emission |
<50db（During Printing） |
| Air Filtration |
HEPA 13+ Activated Carbon |
| Unit Dimension |
Net Weight: 660*600*923mm
Cross Weigh: 800*740*1133mm |
Net Weight: 660*600*1480mm
Cross Weigh: 800*740*1690mm |
| Device Weight |
Net Weight: 85kg
Cross Weigh: 120kg |
Net Weigh: 145kg
Cross Weigh: 220kg |
